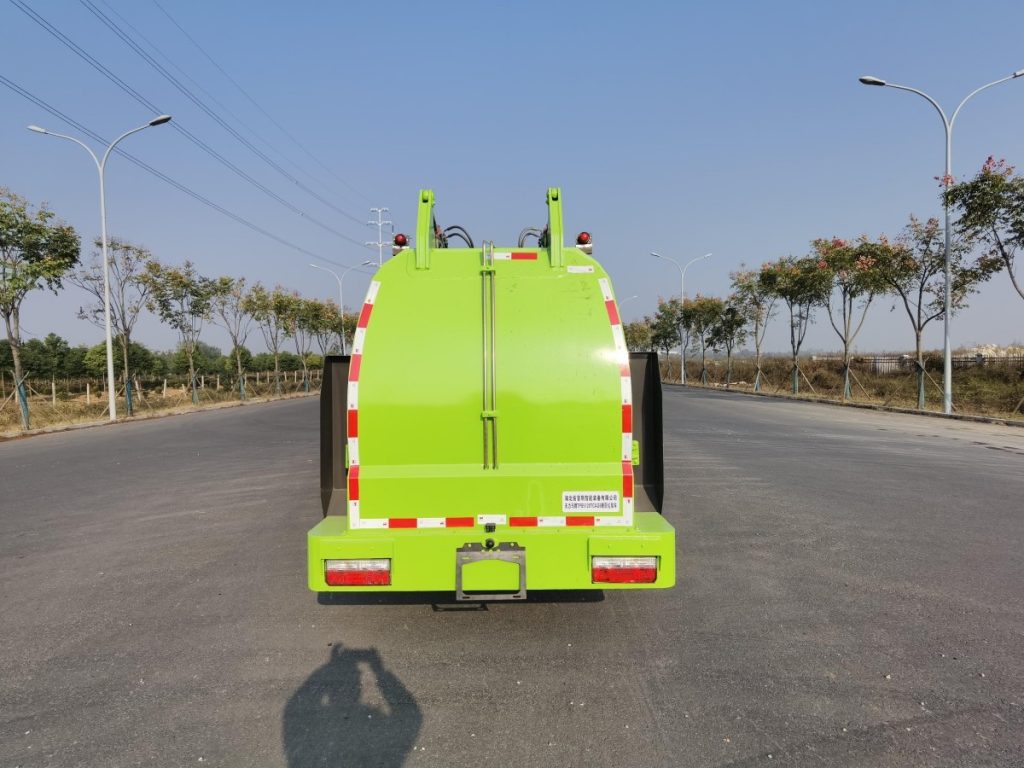

12-ton food waste truck

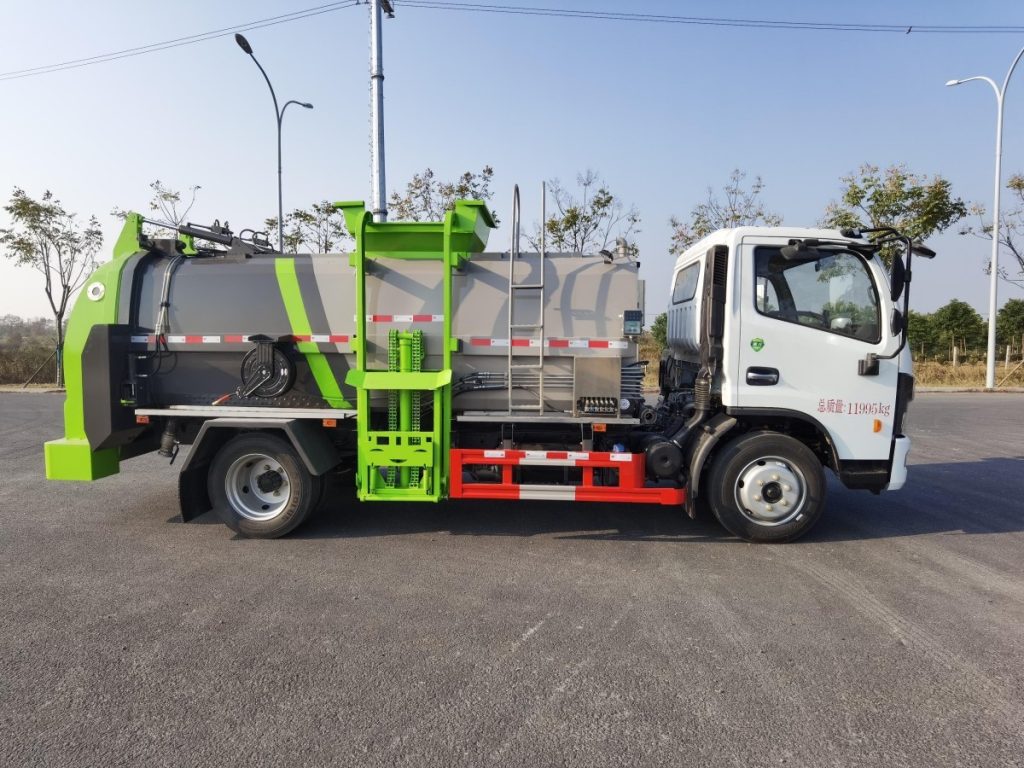

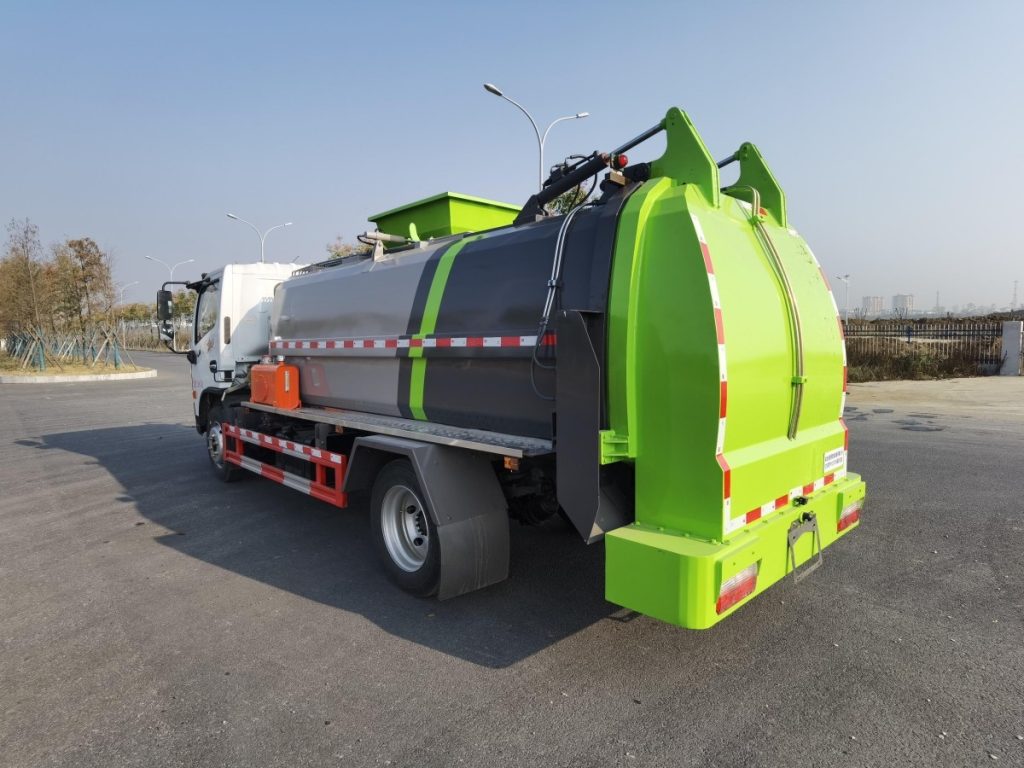

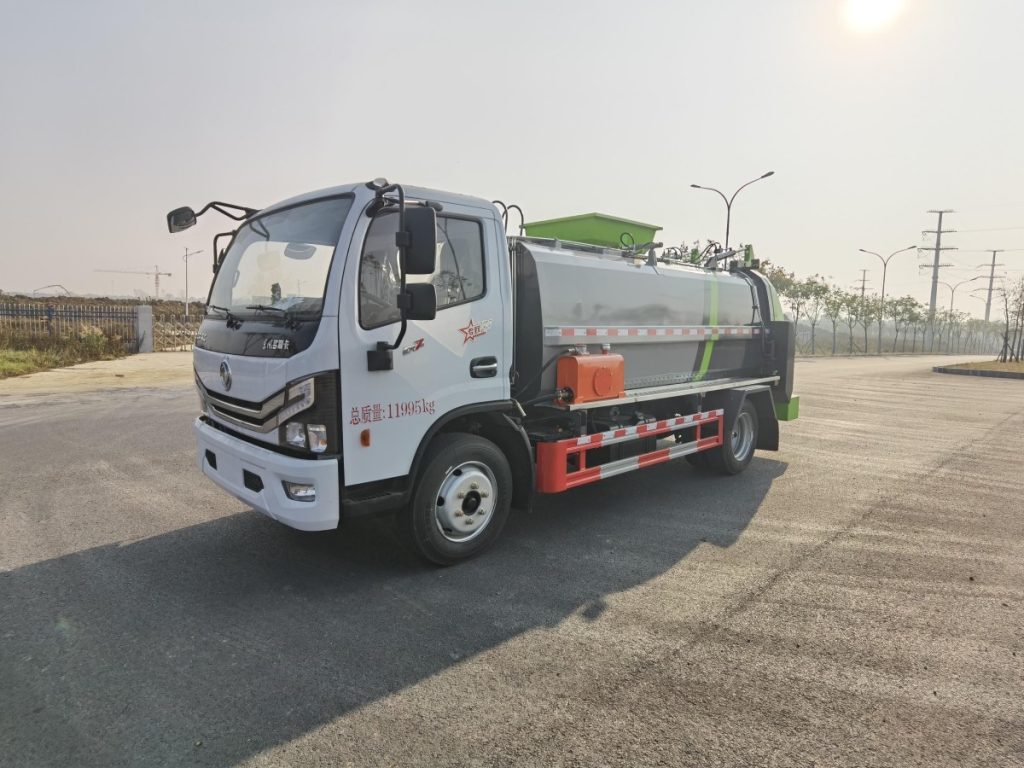

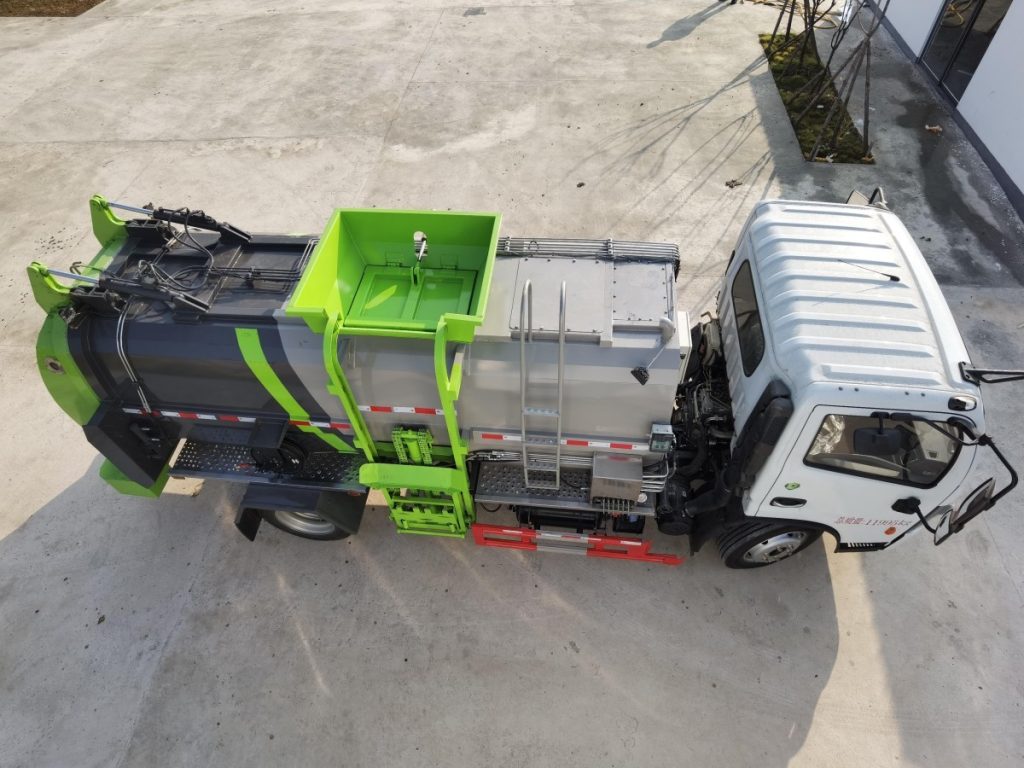

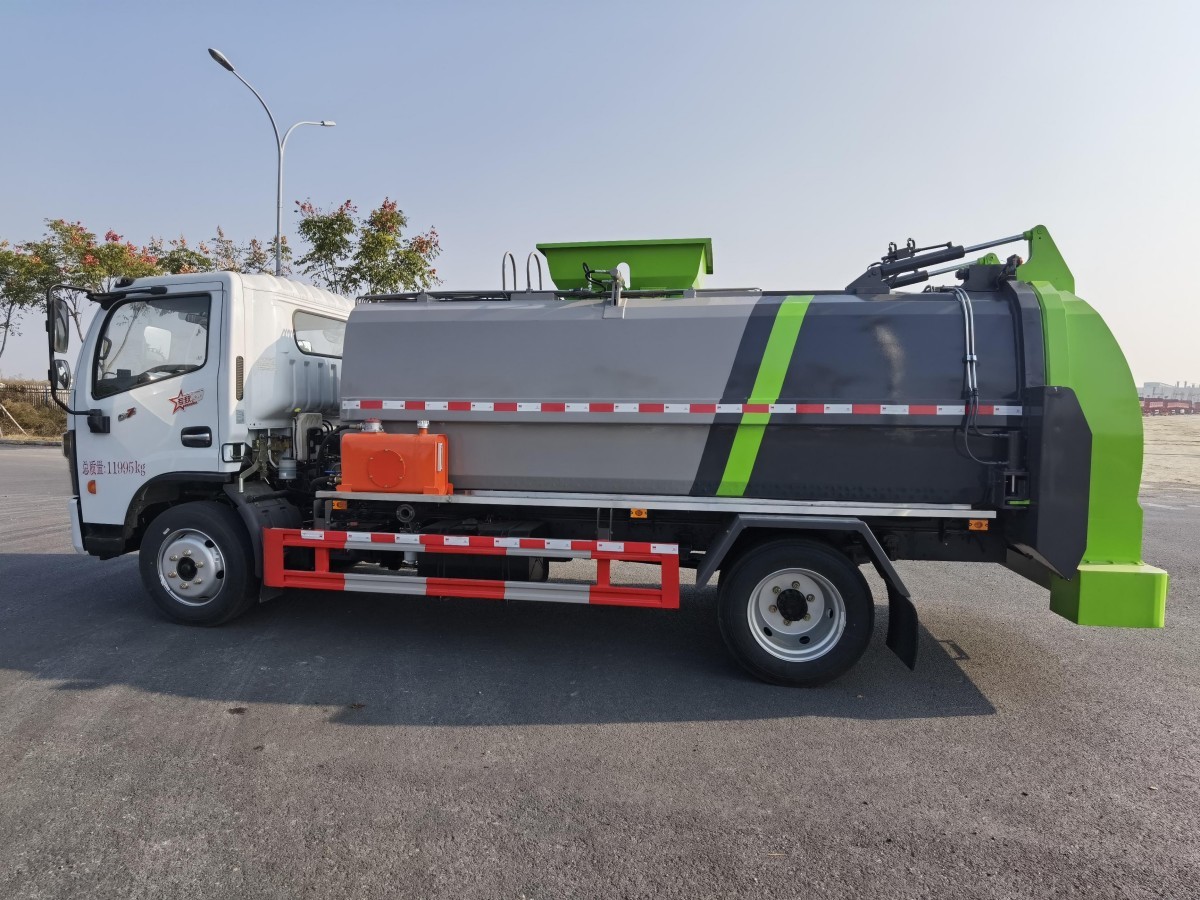

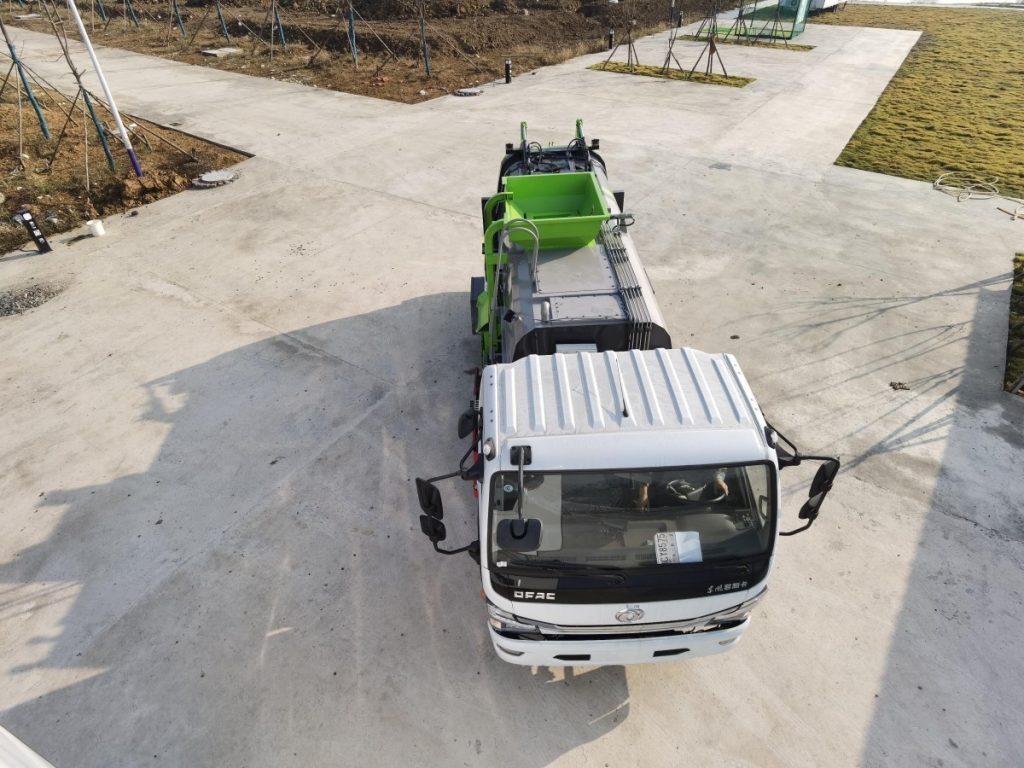

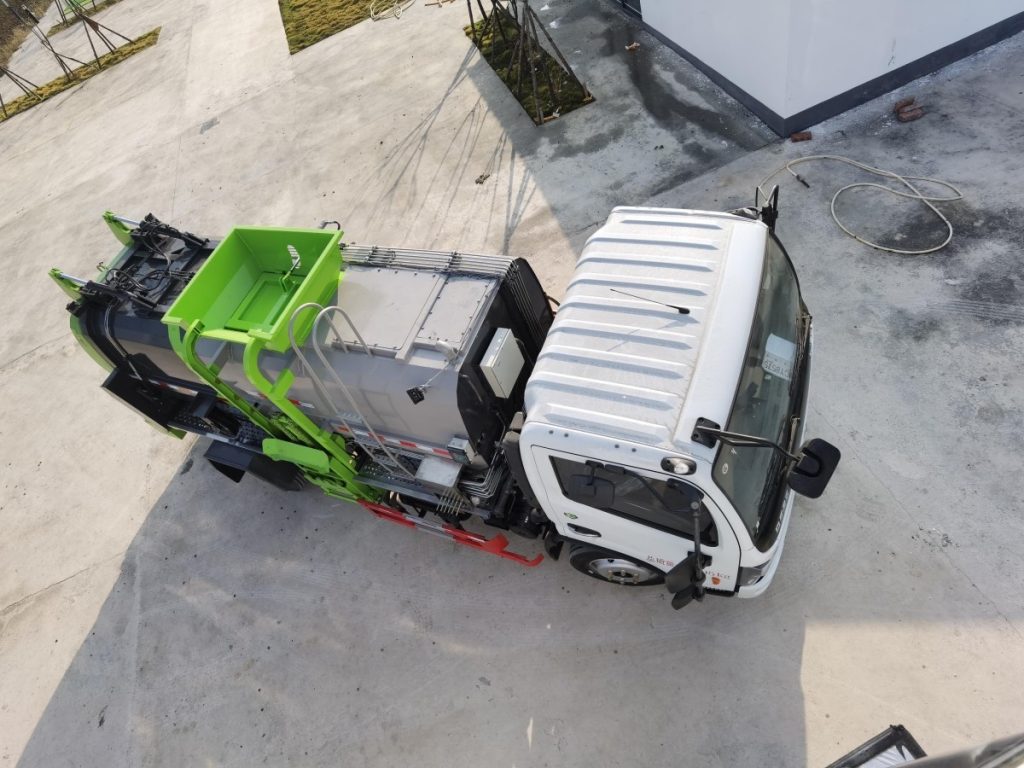

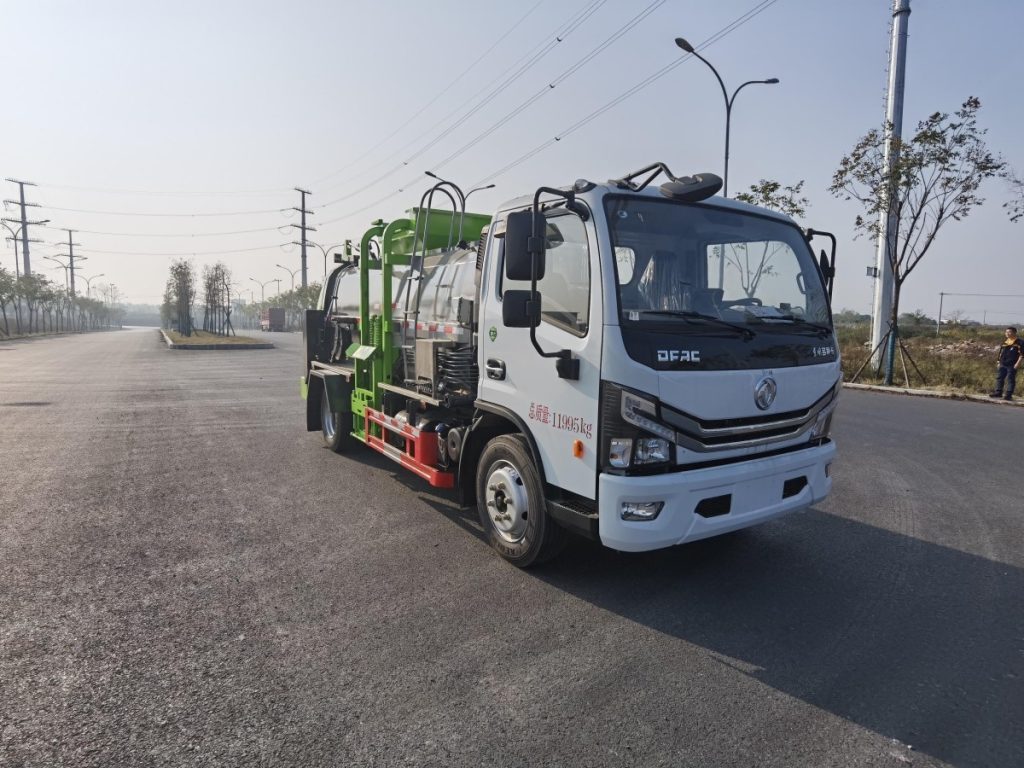

Product Image

Product Details

Main Performance and Features:
1. The appearance is beautiful and generous. The horizontal cross-section of the trash can is square and round, the longitudinal cross-section is a rectangular frame, and both sides are arc-shaped, making the whole machine look beautiful and generous.
2. The body is made of high-quality carbon steel, with a thickness of 4mm at the bottom and 4mm on the sides. The body is divided into two compartments: the upper compartment is for solid waste, and the lower compartment is for settling wastewater. The upper part of the wastewater tank is a filter net (made of stainless steel), used to collect the liquid after solid-liquid separation. The upper front part of the body is a freshwater storage tank, used for cleaning vehicles, etc.
3. The freshwater tank is made of 304 stainless steel with a thickness of 3mm. A fire hydrant interface is set on the front right of the body, used for flushing residual garbage in the wastewater tank, etc. A large-diameter discharge ball valve is set on the rear right of the body, used for discharging liquid garbage in the wastewater tank.
4. The garbage bin and the rear door assembly have good sealing, using imported silicone rubber sealing, good sealing, and eliminating secondary pollution.
5. High reliability and safety. It adopts electro-hydraulic combined control and is equipped with a misoperation prevention device to ensure the accurate and reliable operation of each mechanism.
6. A reversing camera is installed at the rear, and the cab is equipped with a reversing display screen. The display screen size is 7 inches, with infrared function, making operation more convenient.
7. Important components are all from well-known domestic or foreign manufacturers:
Rear control: Uses Eaton button panel from the United States, vehicle-grade standard, low failure rate;
Photoelectric switch: Uses Shanghai-Soldragon, failure rate below 3‰;
Compaction valve: Effectively improves the garbage-to-food waste ratio, a core component of the food waste truck;
Electric control box assembly: Uses Changsha-Forli CNA bus technology, with diagnostic function;
Cab control: Uses CAN bus control panel, vehicle standard, low failure rate;
Hydraulic cylinder: Uses customized cylinder, failure rate below 3‰;
Gear pump: Uses Anhui-Wanlv or Jiashan-Pawa cast iron pump, superior to aluminum shell pump;
Power take-off: Uses original factory or Jiashan power take-off, avoiding gear damage and oil leakage;
Air source three-piece set: Uses Taiwan-Adtek, including pressure reducing valve, filter, and oil mist eliminator;
Multi-way valve: Uses Yangzhou-Zhongmei integral valve, effectively reducing inter-plate oil leakage.
