7.3-ton self-loading garbage truck
Product Brief
Compression box assembly: Carbon steel plate, bottom 4 sides 4 (box body strength not less than Q345B or high-strength weathering steel plate, plate thickness is 4mm, actual plate thickness not less than 3.75mm)

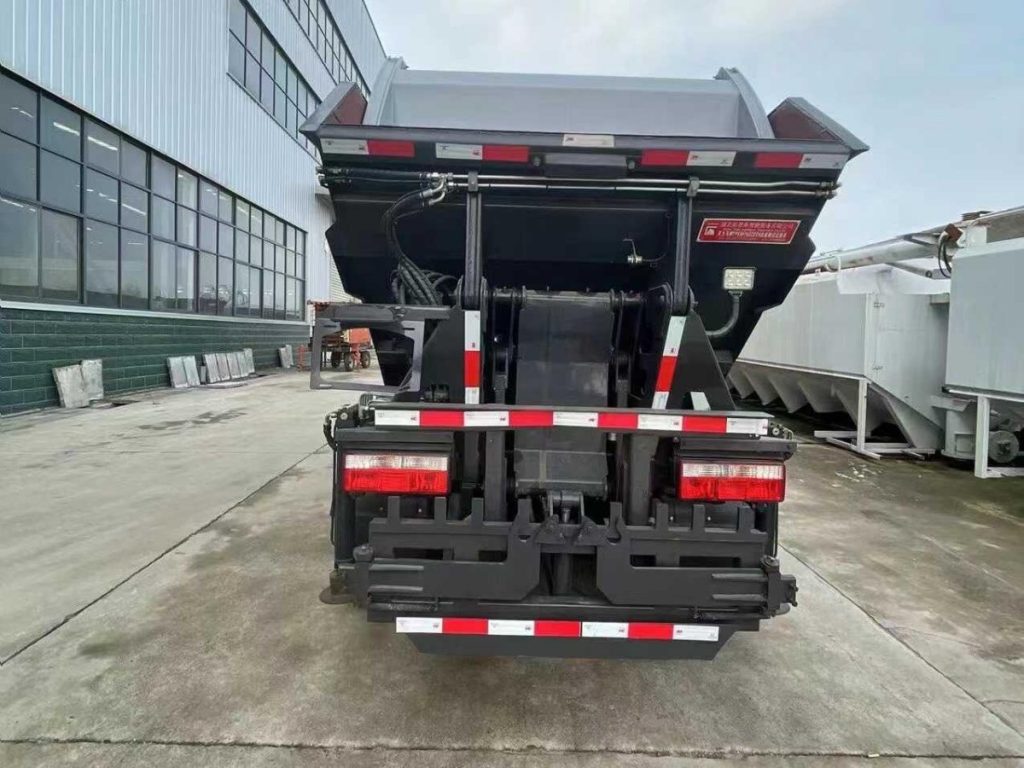

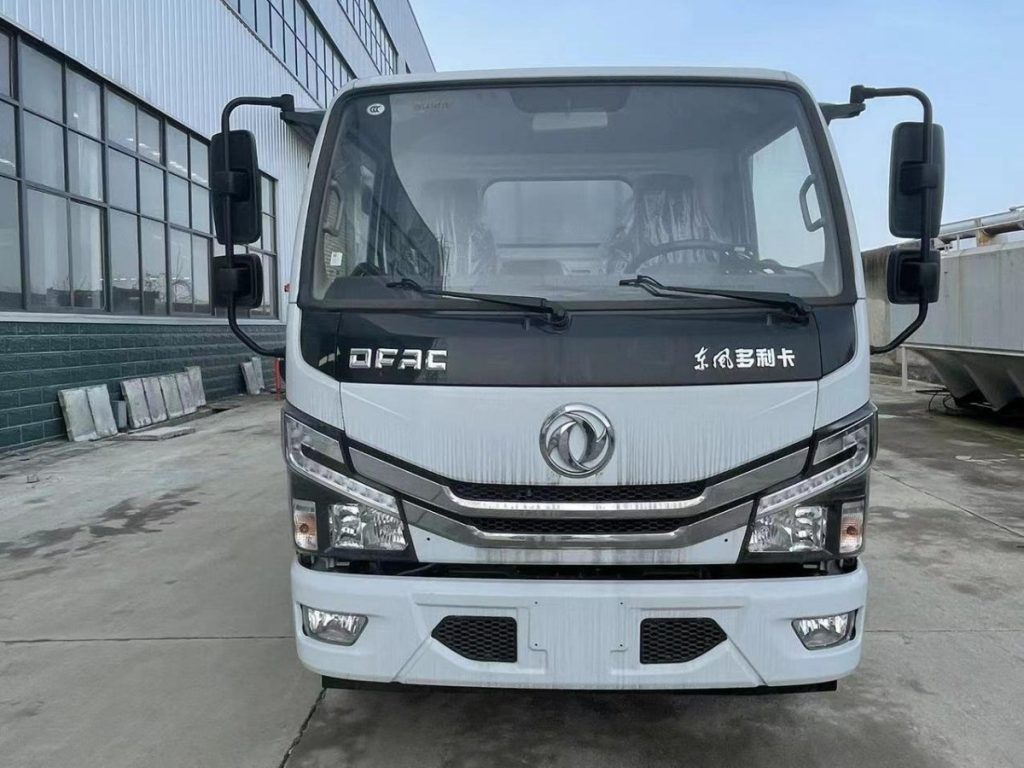

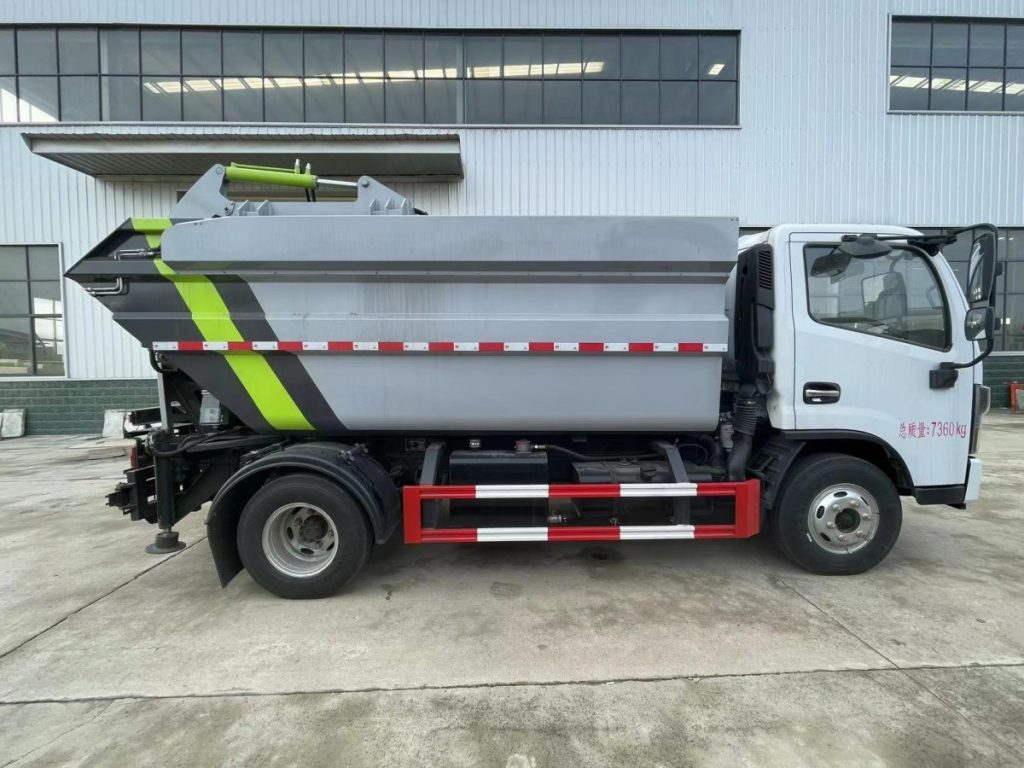

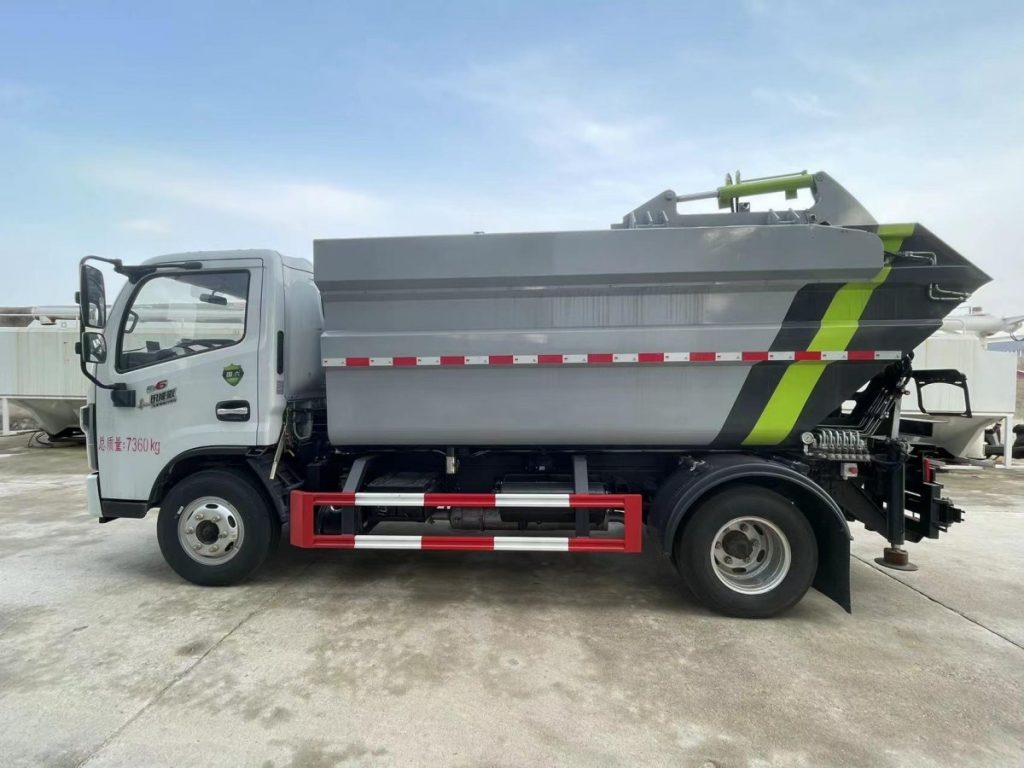

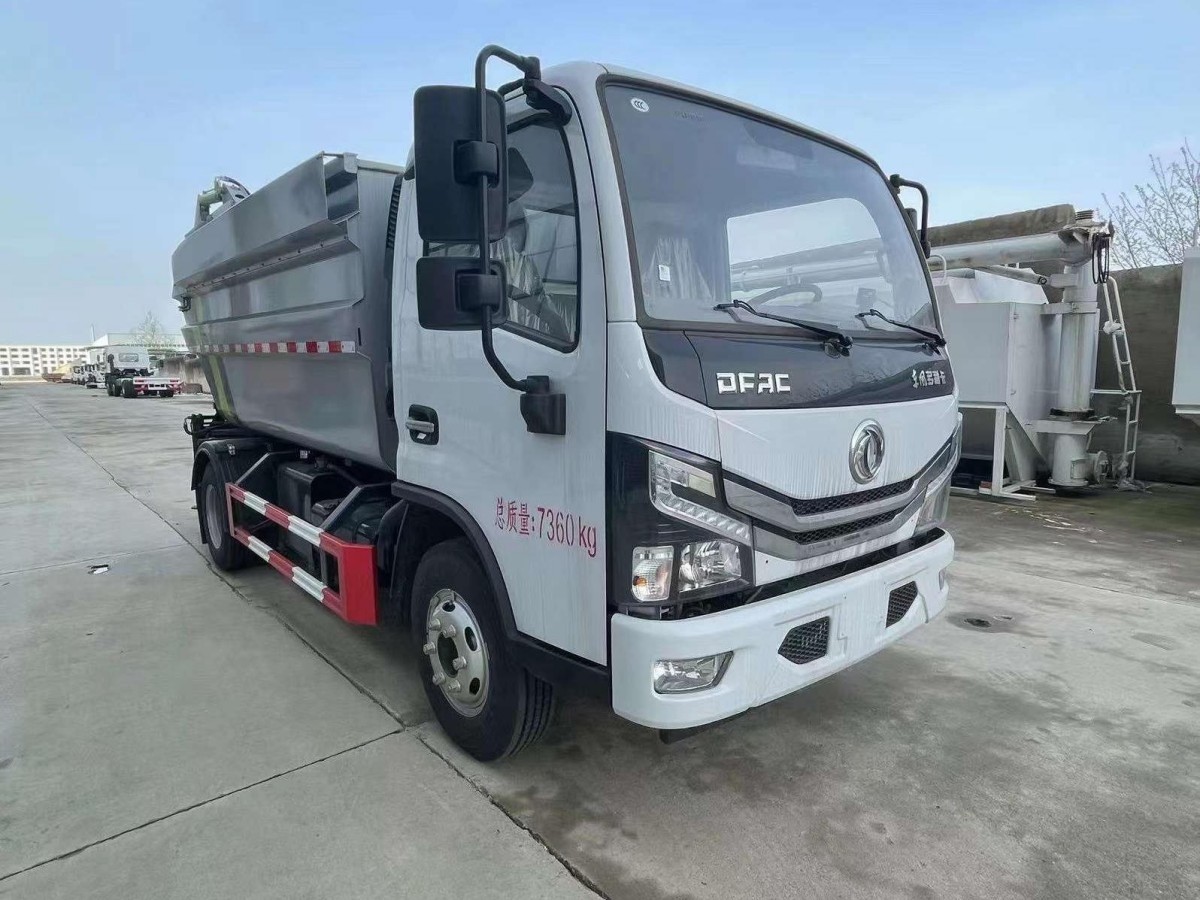

Product Image
Product Details
Product Features
1. Compression box assembly: Carbon steel plate, bottom 4 sides 4 (the box strength is not less than Q345B or high-strength weathering steel plate, plate thickness is 4mm, the actual plate thickness is not less than 3.75mm).
2. Tail control: Uses Eaton button panel from the United States, with a remote control, vehicle-grade standard, low failure rate.
3. Photoelectric switch: Uses Shanghai-SODILON, failure rate below 3‰.
4. Compaction valve: Effectively improves the garbage compression ratio, a core component of the compression vehicle.
5. Electrical control box assembly: Uses Changsha-Fuli CNA bus technology, with diagnostic function.
6. Cab control: Uses CAN bus control panel, vehicle-grade standard, low failure rate.
7. Hydraulic cylinder: Uses a customized cylinder from Tops, failure rate below 3‰.
8. Gear pump: Uses Anhui-Wan Liquid or Jiashan-Pawa cast iron pump, compared to aluminum shell pumps, the pump is more resistant to high pressure and has a longer lifespan.
9. Power take-off: Uses the original factory or Jiashan power take-off, avoiding gear wear, oil leakage, and other failures.
10. Pneumatic three-piece set: Uses Taiwan-Adtek, including pressure reducing valve, filter, and oil fogger.
11. Multi-way valve: Uses Yangzhou-Zhongmei integral valve, effectively reducing inter-slice oil leakage, increased valve body diameter, effectively reducing valve sticking.
| Name | Vehicle Model | Parameters |
| Self-loading garbage truck | TPS5070ZZZG6 | Overall dimensions: 5630×2050×2445(mm) |
| Chassis model: EQ1075SJ3CDF | ||
| Fuel type: Diesel | ||
| Emission standard: National VI | ||
| Gross weight: 7360Kg | ||
| Curb weight: 4480(Kg) | ||
| Rated load: 2750 (Kg) | ||
| Number of cab occupants: 2 People | ||
| Engine model: Anhui Quanchai Power Co., Ltd. Q28-130E60 | ||
| Power (kw)/Horsepower (PS): 96/130.56 | ||
| Engine displacement: 2800ml | ||
| Approach angle/Departure angle: 27/22 (°) | ||
| Front overhang/Rear overhang: 1055/1267 (mm) | ||
| Wheelbase: 3308(mm) | ||
| Number of axles: 2 axles | ||
| Tire specifications: 7.00R16, 7.50R16, 245/70R19.5 12PR | ||
| Number of tires: 6 | ||
| Bin volume: 6.5m³ | ||
| Tipping mechanism: Can hang 1 240L plastic bucket. | ||
| Maximum hydraulic system pressure: 16MPa; | ||
| Compression method: In-bin pusher compression; |
