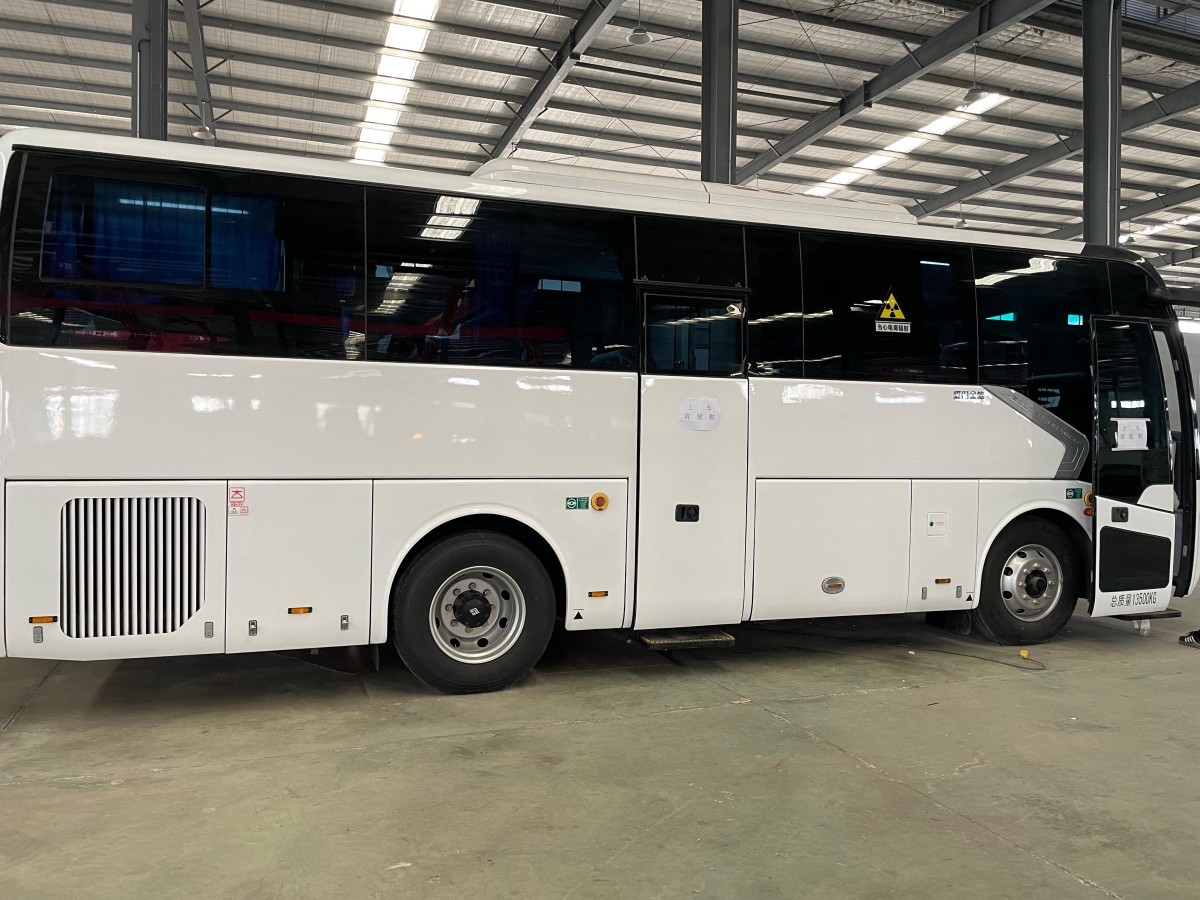

9-meter medical examination vehicle
Product Image
Product Details
| Model | XML5147XYL16 | |||
| Basic Parameters | Length (mm) | 8995 | Wheelbase (mm) | 4300 |
| Width (mm) | 2500 | Curb Weight (kg) | 10800.11200.11520 | |
| Height (mm) | 3350.3480.3560 | Gross Weight (kg) | 13500 | |
| Passenger Capacity (persons) | 2-9 | Emission Standard | National VI | |
| Item Objective | Standard Configuration | |||
| Chassis Configuration | Engine | YGS06270-62 | ||
| Power (kW) | 199 | |||
| Displacement (ml) | 6234 | |||
| Transmission | Six-speed Manual | |||
| Service Brake | Front disc, rear drum, dual-circuit air pressure brake | |||
| Auxiliary Brake | Eddy Current Retarder | |||
| ABS | Domestic | |||
| Suspension System | 6/8.-/- | |||
| Tires | 10R22.5 | |||
| Fuel Tank | 200L | |||
| Seats | Denim C-type Seats | |||
| Rearview Mirrors | Electric Defrost | |||
| Driver’s Seat | Mechanical shock absorption, three-way adjustable | |||
| Luggage Compartment Door | Top-hinged aluminum alloy | |||
| Sunroof | One, With ventilation fan | |||
| Passenger Door | Front aluminum alloy pneumatic outward-swinging door, with remote control lock | |||
| Electrical Configuration | Air Conditioning | Non-independent top-mounted air conditioning | ||
| Warm Air | Front Defroster | |||
| Audio-Visual System | MP3 Player | |||
| Electronic Clock | Yes | |||
| Electric Horn | Yes | |||
| Driving Recorder | With GPS function, platform management | |||
| Serial Number | Component Name | Model | Standard /Optional | Quantity | Unit |
| 1 | Flat Panel Detector | HMD-1717X | ☑ Standard | 1 | Set |
| 2 | X-ray Tube Assembly | HMT-17 | ☑ Standard | 1 | Set |
| 3 | High-Voltage Generator | HMG-54 | ☑ Standard | 1 | Set |
| 4 | Frame | HM-OBD | □Standard | 1 | Set |
| 5 | Collimator | HMC-38 | ☑ Standard | 1 | Set |
| 6 | Grid | JPI/GRID-1000 | □Standard | 1 | Piece |
| 7 | High-Voltage Cable | WBX-Z75kV-T | □Standard | 1 | Set |
| 8 | Call Intercom System | SD-2016V | □Standard | 1 | Set |
| 9 | Image Acquisition Workstation | HMS-003 | ☑ Standard | 1 | Set |
| 10 | Qixi Medical Digital X-ray Imaging Acquisition Software [Abbreviation: Acquisition Software] V1.0 Acquisition Software [Abbreviation: Acquisition Software] V1.0 | V1.0 | □Standard | 1 | Set |
| 11 | Identity Card Reader | / | □Standard | 1 | Set |
| 12 | Scanning Gun | / | □Standard | 1 | Set |
| 13 | Social Security Card Reader | / | □Standard | 1 | Set |
| 14 | Ionization Chamber | / | fOptional | 1 | Set |
Keywords: 9-meter medical examination vehicle
