18トン清掃車
製品概要

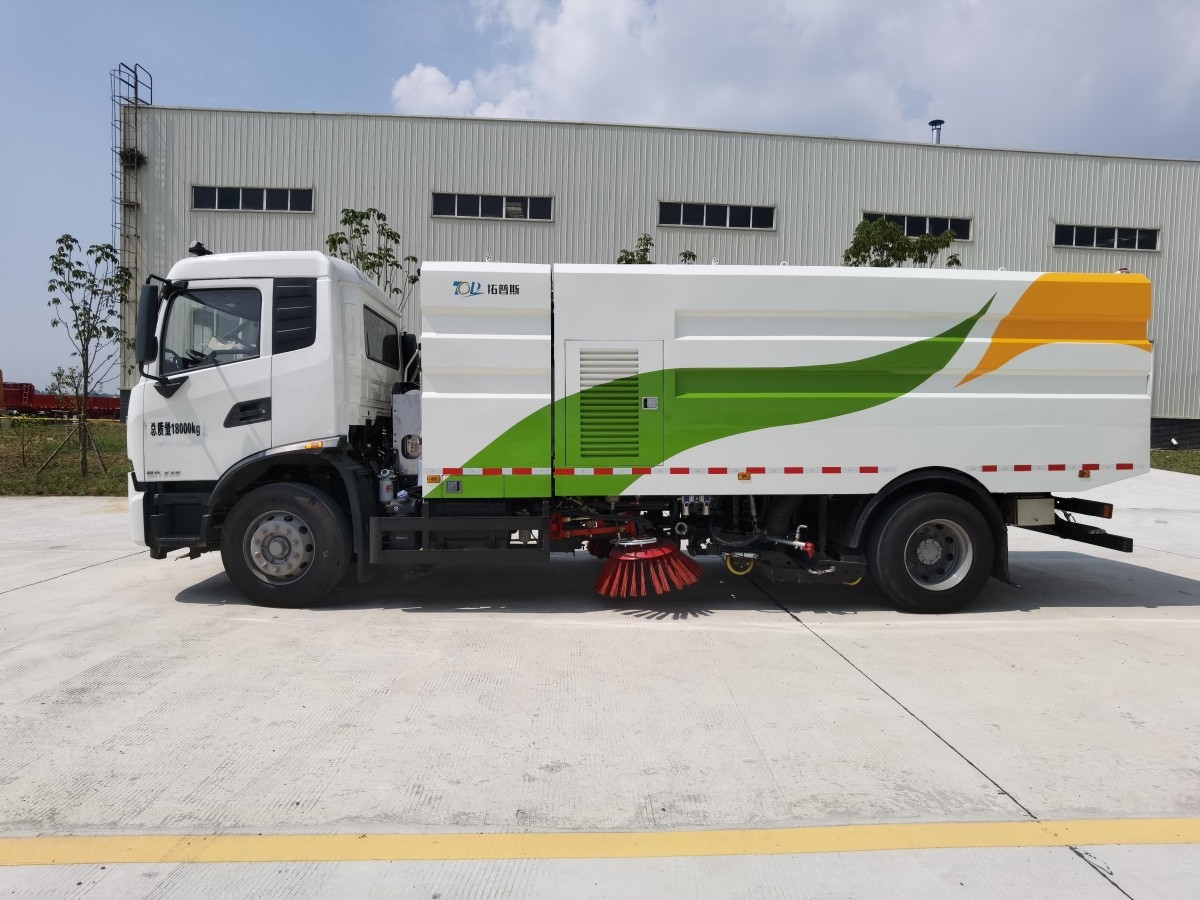

18-ton cleaning and sweeping vehicle is designed for urban sanitation, combining efficient road-surface cleaning, reinforced safety protection, advanced electronics, and flexible configuration options. With multiple dimensional setups, optional speed control, and reliable ABS/AES systems, the vehicle adapts to different operational environments while ensuring stable performance and long-term durability.
商品画像
商品詳細
製品の特徴
1. Cleaning & Sweeping Function
The vehicle is equipped with a refined cleaning system and sweeping equipment used for road-surface cleaning operations.
2. Side and Rear Protection Devices
- The side protection device consists of side guards and special components.
- The rear lower protection device is made of Q235 material.
- All connections are bolted.
- Rear guard cross-section: 120 × 60 mm;
- Ground clearance: 500 mm.
3. Onboard Recorders and Electronic Systems
- The vehicle is equipped with a driving recorder featuring satellite positioning.
- The chassis is fitted with AES and ABS systems.
- ABS model: 3631010-C2000V, manufacturer: Knorr–Bremse Commercial Vehicle Systems (Shiyan) Co., Ltd.
- AES model: AES8, manufacturer: Knorr–Bremse Commercial Vehicle Systems (Shiyan) Co., Ltd.
- Additional ABS model: 4460046450, manufacturer: WABCO Automotive Control Systems (China) Co., Ltd.
- Optional driver air-conditioning system is available depending on chassis configuration.
- Different door structures can be selected based on chassis options.
- Optional ETC onboard unit available.
4. Speed Limiting Device & Dimensional Options
- Optional speed-limiting device: maximum speed 89 km/h.
- Optional exterior dimensions (length × front track × rear track × wheelbase, mm):
- 8910 × 1400 (1430) × 2210 (2180) × 5300
- 9240 × 1400 (1430) × 2540 (2510) × 5300
- 8645 × 1400 (1430) × 1945 (1915) × 5300
- 8550 × 1400 (1430) × 2150 (2120) × 5000
- 8310 × 1400 (1430) × 2210 (2180) × 4700
- 8050 × 1400 (1430) × 2150 (2120) × 4450
- 7700 × 1400 (1430) × 2100 (2070) × 4200
| 車種 | 特定のパラメーター | 医療車両 |
| 全体の寸法： | TPS5042XJHG6 | 5700 * 5870 * 2552,2680, 1998 (mm) 2750 Gross Weight: 3800Kg |
| カーブ重量: 3605,2680,2850,3050(Kg) | ||
| 乗車定員：2～5名 | ||
| シャーシモデルSH5041XXYA7DB | ||
| 排出基準国家VI | ||
| 燃料タイプディーゼル | ||
| エンジンのモデル上海ディーゼルエンジン有限公司. | ||
| エンジン排気量1996(ミリリットル) SC20M125.1Q6 | ||
| パワー（kw）/馬力（PS）：93/126.48 | ||
| フロントオーバーハング/リアオーバーハング：865/1155,865/985 | ||
| ホイールベース3850 | ||
| 車軸数2 | ||
| アプローチ/デパーチャー・アングル：26/17,26/21 | ||
| タイヤサイズ：215/75R16LT,195/75R16LT 12PR | ||
| タイヤの数4 | ||
| 最高速度：155,150(km/h) | ||
| 全長(mm)/フロントオーバーハング(mm)/リアオーバーハング(mm)/ホイールベース(mm)：対応：8910/1400(1430)/2210(2180)/5300,9240/1400(1430)/2540(2510)/5300,8645/1400(1430)/1945(1915)/5300,8550/1400(1430)/2150(2120)/5000,8310/1400(1430)/2210(2180)/4700,8050/1400(1430)/2150(2120)/4500,7700/1400(1430)/2100(2070)/4200 |
全長(mm)/フロントオーバーハング(mm)/リアオーバーハング(mm)/ホイールベース(mm)：対応関係8910/1400(1430)/2210(2180)/5300,9240/1400(1430)/2540(2510)/5300,8645/1400(1430)/1945(1915)/5300,8550/1400(1430)/2150(2120)/5000,8310/1400(1430)/2210(2180)/4700,8050/1400(1430)/2150(2120)/4500,7700/1400(1430)/2100(2070)/4200
キーワード 18トン清掃車
